¶ Execute monitor
In project dir in a cmd
idf.py monitor
¶ ESP32 configuration
- Enable c++ exceptions in make menuconfig
- Create a custom csv partitions with 2M for application
- In serial flasher set flash size to 4M
¶ Embeded LEDS
¶ Devkit
'''GPIO_2'''
¶ ESP32
'''GPIO_16'''
¶ PINOUT

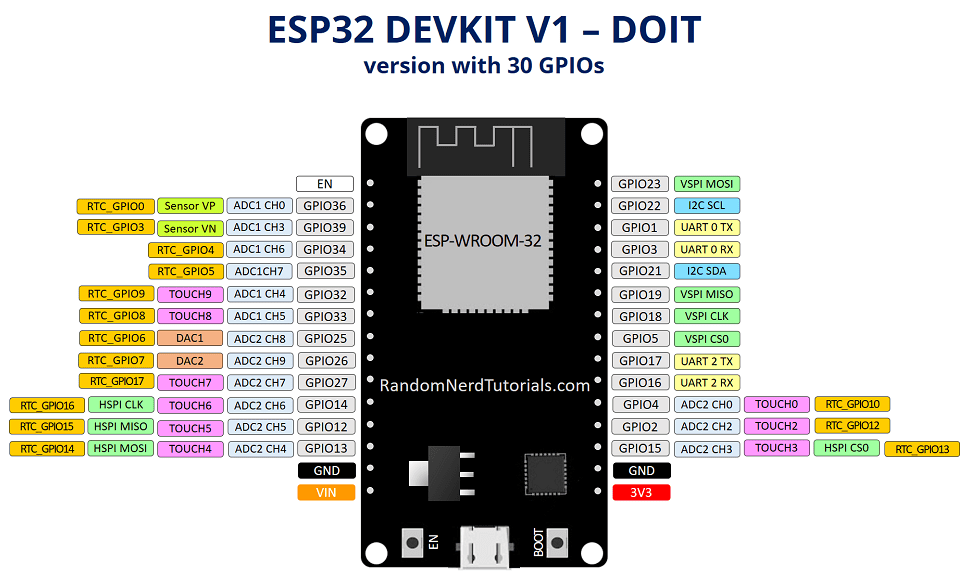

¶ Doit devkit v1 30 GPIO
¶ I2C
I2C | GPIO
+--------------+
| SDA | 21 |
+-------+------+
| SCL | 22 |
+-------+------+

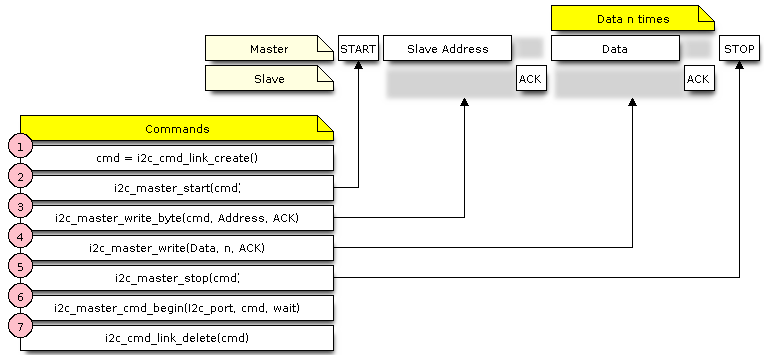

¶ I2C Master write

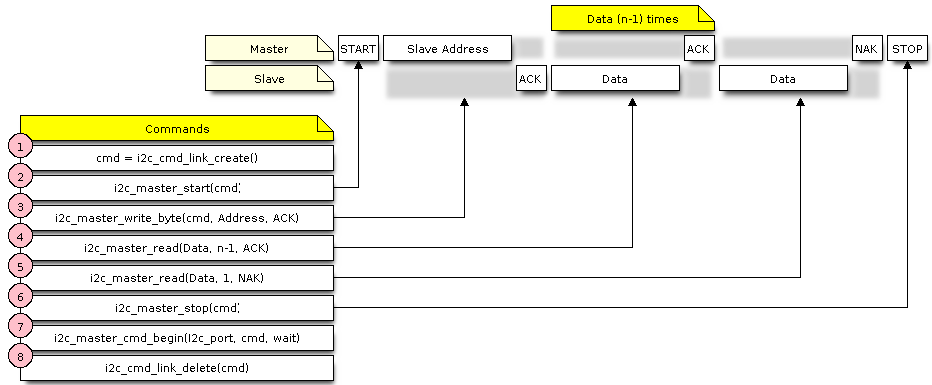

¶ I2C Master read
¶ SD Card
¶ Pins
¶ HSPI
SPI | GPIO
+--------------+
| MISO | 12 |
+-------+------+
| MOSI | 13 |
+-------+------+
| CLK | 14 |
+-------+------+
| CS | 15 |
+-------+------+
¶ VSPI
SPI | GPIO
+--------------+
| MISO | 19 |
+-------+------+
| MOSI | 23 |
+-------+------+
| CLK | 18 |
+-------+------+
| CS | 05 |
+-------+------+
¶ Wiring

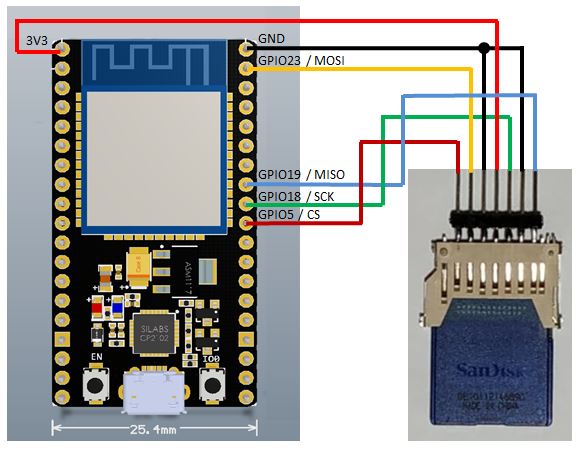

¶ No adapter

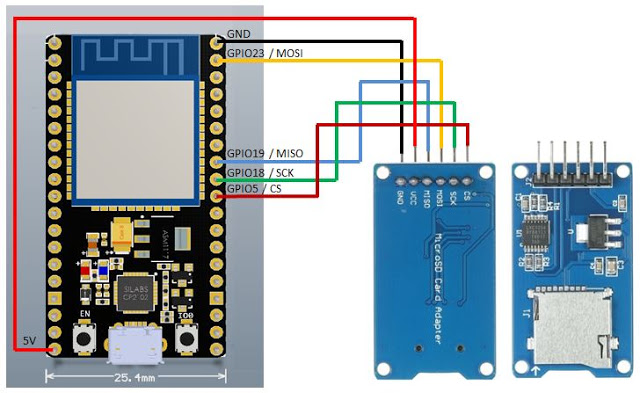

¶ Adapter 1

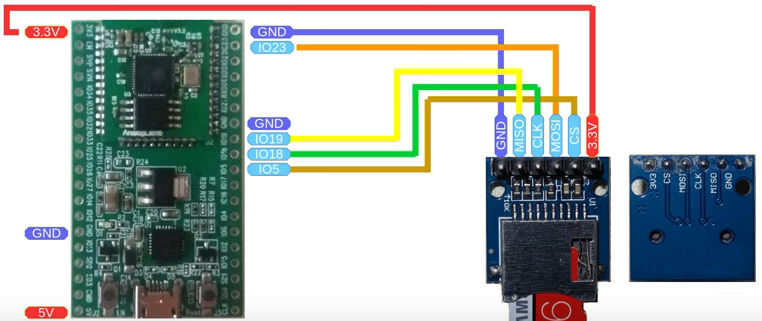

¶ Adapter 2
¶ Protocol
¶ Start serving cocktail
{
"cocktail": {
"name": "test",
"sequence": [{
"rhum": 1,
"coco": 2
},{
"ananas": 2,
"orange": 6
}]
}
}
Sequence is an array of dict each dict is a simultaneous set and each dict have to be sorted by value increasing
¶ Reboot mycoolmix
{
"reboot": true
}
¶ Directly drive motor
{
"motor": {
"id": 0,
"state": 0,
"speed": 50
}
}
- speed : int - (optional) between 0 to 100
- id : int - pump id
- state : int - motor state (0 : FORWARD, 1 : STOP, 2: BACKWARD)
¶ Add wifis
{
"addWifis": {
"wifiId1" : "wifiPassword1",
"wifiId2" : "wifiPassword2",
}
}
- "Wifi SSID" : "Wifi password"
¶ Delete wifis
{
"deleteWifis": [
"wifiId1",
"wifiId2"
]
}
- "Wifi SSID"
¶ Delete all wifis
{
"deleteAllWifis": true
}
¶ Set bottles
{
"setBottles": {
"rhum" : 0,
"vodka": 1
}
}
- "Bottle Name" : bottle id
¶ Unset bottles
{
"unsetBottles": [
"rhum",
"orange",
"coco"
]
}
- "Bottle name"
¶ Unset all bottles
{
"unsetAllBottles": true
}
¶ Scan I2C peripherals
{
"i2cScan": true
}
¶ Get free heap size
{
"ram": true
}
¶ Show config
{
"showConfig": true
}
